Research, Review, Rebuild

Bahmni and Legacy Code Migration

Bahmni is an open-source Hospital Management
System & EMR built to support healthcare delivery in low-resource
settings providing a rich interface for clinical and administrative users.
The Bahmni frontend was originally
developed using AngularJS (version 1.x)—an
early but powerful framework for building dynamic web applications.
However, AngularJS has long been deprecated by the Angular team at Google,
with official long-term support having ended in December 2021.

Despite this, Bahmni continues to rely heavily on AngularJS for many of
its core workflows. This reliance introduces significant risks, including
security vulnerabilities from unpatched dependencies, difficulty in
onboarding developers unfamiliar with the outdated framework, limited
compatibility with modern tools and libraries, and reduced maintainability
as new requirements are built on an aging codebase.

In healthcare systems, the continued use of outdated software can
adversely affect clinical workflows and compromise patient data safety.
For Bahmni, frontend migration has become a critical priority.

Research, Review, Rebuild

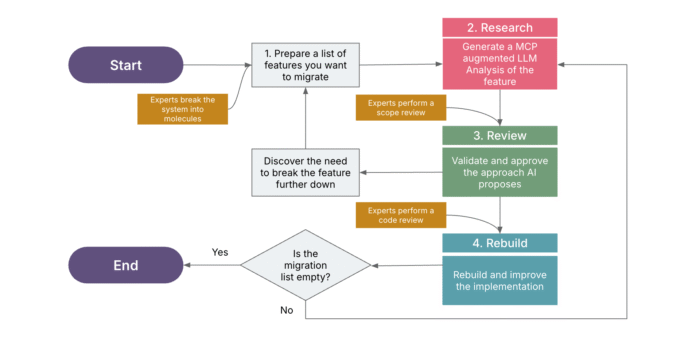

The workflow I followed is called “Research, Review, Rebuild” — where
we do a feature migration research using a couple of MCP servers, validate
and approve the approach AI proposes, rebuild the feature and then once
all the code generation is done, refactor things that you didn’t like.

The Workflow

1. Prepare a list of features targeted for migration. Select one feature to
   begin with.

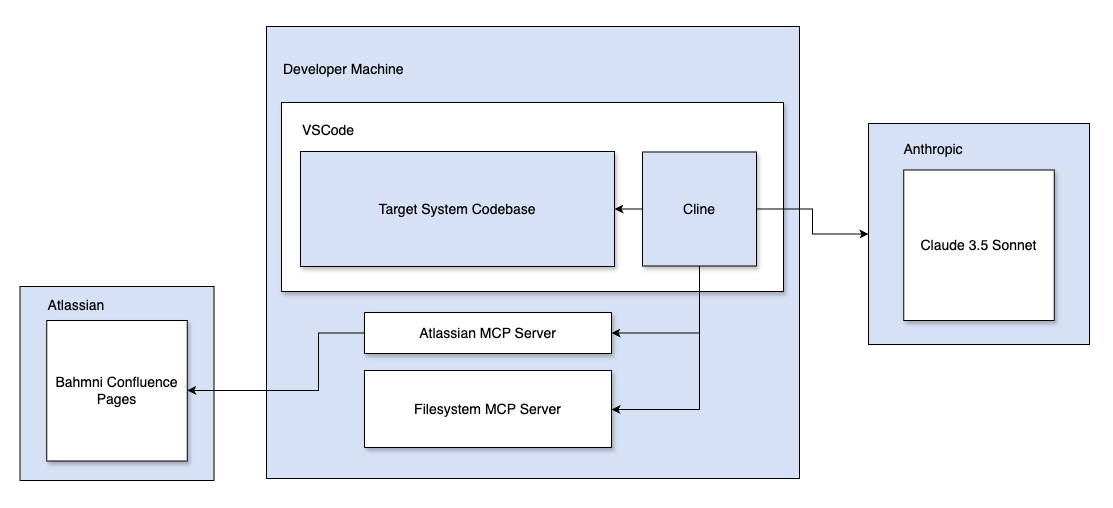

2. Use Model Context Protocol (MCP) servers to research the selected feature
   by generating a contextual analysis of the selected feature through a Large
   Language Model (LLM).
3. Have domain experts review the generated analysis, ensuring it is
   accurate, aligns with existing project conventions and architectural guidelines.
   If the feature is not sufficiently isolated for migration, defer it and update
   the feature list accordingly.
4. Proceed with LLM-assisted rebuild of the validated feature to the target
   system or framework.
5. Until the list is empty, go back to #2

Before Getting Started

Before we proceed with the workflow, it is essential to have a
high-level understanding of the existing codebase and determine which
components should be retained, discarded, or deferred for future
consideration.

In the context of Bahmni, Display
Controls
are modular, configurable widgets that can be embedded across various
pages to enhance the system’s flexibility. Their decoupled nature makes
them well-suited for targeted modernization efforts. Bahmni currently
includes over 30 display controls developed over time. These controls are
highly configurable, allowing healthcare providers to tailor the interface
to display pertinent data like diagnoses, treatments, lab results, and
more. By leveraging display controls, Bahmni facilitates a customizable
and streamlined user experience, aligning with the diverse needs of
healthcare settings.

All the existing Bahmni display controls are built over OpenMRS REST
endpoint, which is tightly coupled with the OpenMRS data model and
specific implementation logic. OpenMRS (Open
Medical Record System) is an open-source platform designed to serve as a
foundational EMR system primarily for low-resource environments providing
customizable and scalable ways to manage health data, especially in
developing countries. Bahmni is built on top of OpenMRS, relying on
OpenMRS for clinical data modeling and patient record management, using
its APIs and data structures. When someone uses Bahmni, they are
essentially using OpenMRS as part of a larger system.

FHIR (Fast Healthcare
Interoperability Resources) is a modern standard for healthcare data
exchange, designed to simplify interoperability by using a flexible,
modular approach to represent and share clinical, administrative, and
financial data across systems. FHIR was introduced by
HL7 (Health Level Seven International), a
not-for-profit standards development organization that plays a pivotal
role in the healthcare industry by developing frameworks and standards for
the exchange, integration, sharing, and retrieval of electronic health
information. The term “Health Level Seven” refers to the seventh layer
of the OSI (Open Systems
Interconnection) model—the application
layer,
responsible for managing data exchange between distributed systems.

Although FHIR was initiated in 2011, it reached a significant milestone
in December 2018 with the release of FHIR Release 4 (R4). This release
introduced the first normative content, marking FHIR’s evolution into a
stable, production-ready standard suitable for widespread adoption.

Bahmni’s development commenced in early 2013, during a time when FHIR
was still in its early stages and had not yet achieved normative status.
As such, Bahmni relied heavily on the mature and production-proven OpenMRS
REST API. Given Bahmni’s dependence on OpenMRS, the availability of FHIR
support in Bahmni was inherently tied to OpenMRS’s adoption of FHIR. Until
recently, FHIR support in OpenMRS remained limited, experimental, and
lacked comprehensive coverage for many essential resource types.

With the recent advancements in FHIR support within OpenMRS, a key
priority in the ongoing migration effort is to architect the target system
using FHIR R4. Leveraging FHIR endpoints facilitates standardization,
enhances interoperability, and simplifies integration with external
systems, aligning the system with globally recognized healthcare data
exchange standards.

For the purpose of this experiment, we will focus specifically on the
Treatments Display Control as a representative candidate for
migration.

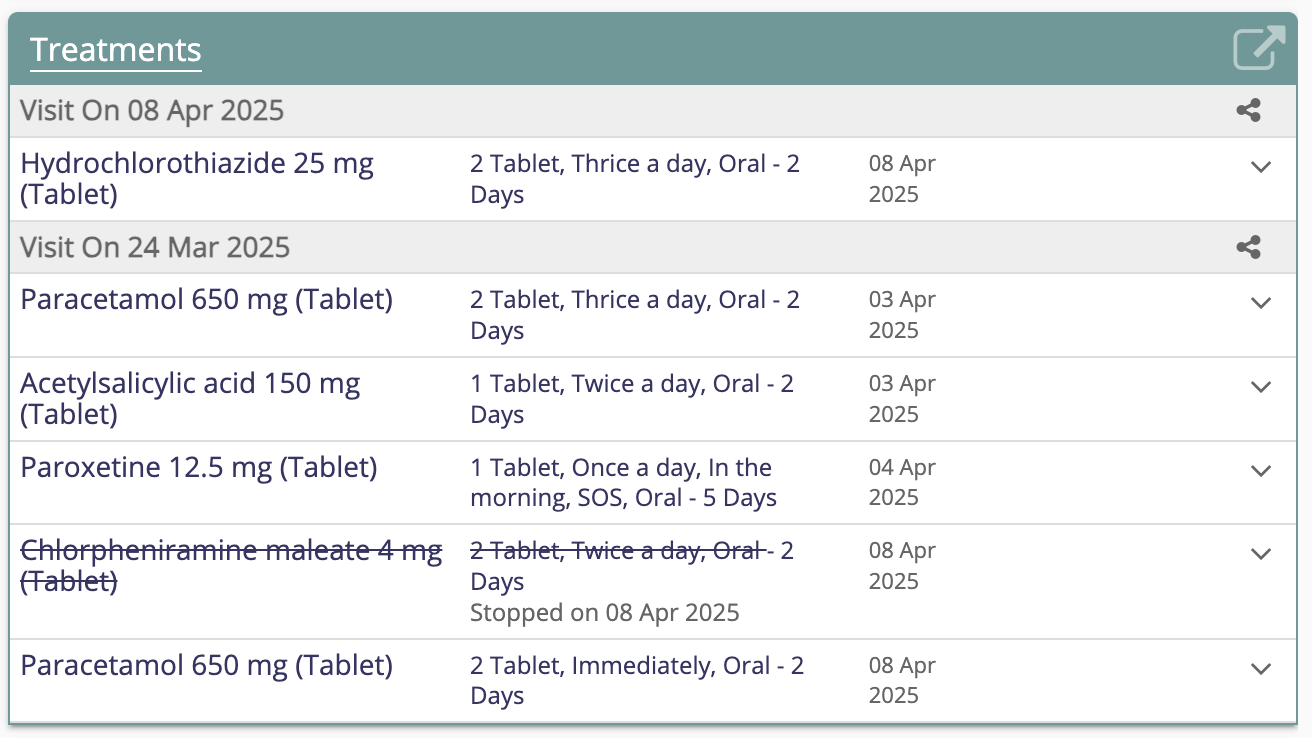

Figure 2: Legacy Treatments Display Control built using
Angular and integrated with OpenMRS REST endpoints

The Treatment Details Control is a specific type of display control
in Bahmni that focuses on presenting comprehensive information about a
patient’s prescriptions or drug orders over a configurable number of
visits. This control is instrumental in providing clinicians with a
consolidated view of a patient’s treatment history, aiding in informed
decision-making. It retrieves data via a REST API, processing it into a
view model for UI rendering in a tabular format, supporting both current
and historical treatments. The control incorporates error handling, empty
state management, and performance optimizations to ensure a robust and
efficient user experience.

The data for this control is sourced from the
/openmrs/ws/rest/v1/bahmnicore/drugOrders/prescribedAndActive endpoint,
which returns visitDrugOrders. The visitDrugOrders array contains
detailed entries that link drug orders to specific visits, along with
metadata about the provider, drug concept, and dosing instructions. Each
drug order includes prescription details such as drug name, dosage,
frequency, duration, administration route, start and stop dates, and
standard code mappings (e.g., WHOATC, CIEL, SNOMED-CT, RxNORM).

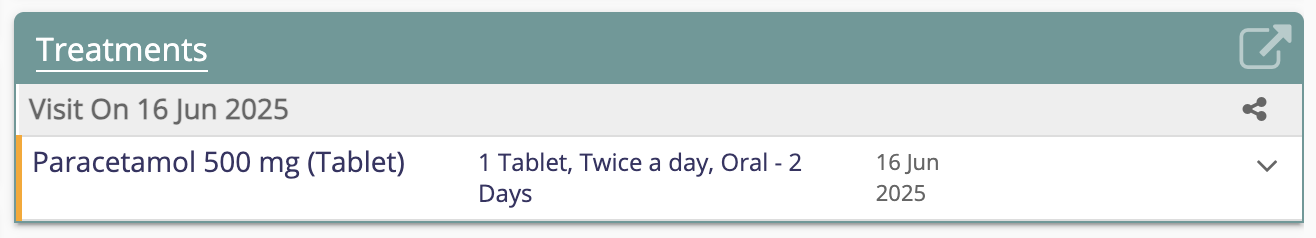

Here is a sample JSON response from Bahmni’s
/bahmnicore/drugOrders/prescribedAndActive REST API endpoint containing
detailed information about a patient’s drug orders during a specific
visit, including metadata like drug name, dosage, frequency, duration,
route, and prescribing provider.

{
  "visitDrugOrders": [
    {
      "visit": {
        "uuid": "3145cef3-abfa-4287-889d-c61154428429",
        "startDateTime": 1750033721000
      },
      "drugOrder": {
        "concept": {
          "uuid": "70116AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
          "name": "Acetaminophen",
          "dataType": "N/A",
          "shortName": "Acetaminophen",
          "units": null,
          "conceptClass": "Drug",
          "hiNormal": null,
          "lowNormal": null,
          "set": false,
          "mappings": [
            {
              "code": "70116",
              "name": null,
              "source": "CIEL"
            },y
            /* Response Truncated */
          ]
        },
        "instructions": null,
        "uuid": "a8a2e7d6-50cf-4e3e-8693-98ff212eee1b",

        "orderType": "Drug Order",
        "accessionNumber": null,
        "orderGroup": null,
        "dateCreated": null,
        "dateChanged": null,
        "dateStopped": null,
        "orderNumber": "ORD-1",
        "careSetting": "OUTPATIENT",
        "action": "NEW",
        "commentToFulfiller": null,
        "autoExpireDate": 1750206569000,
        "urgency": null,
        "previousOrderUuid": null,
        "drug": {
          "name": "Paracetamol 500 mg",
          "uuid": "e8265115-66d3-459c-852e-b9963b2e38eb",
          "form": "Tablet",
          "strength": "500 mg"
        },
        "drugNonCoded": null,
        "dosingInstructionType": "org.openmrs.module.bahmniemrapi.drugorder.dosinginstructions.FlexibleDosingInstructions",
        "dosingInstructions": {
          "dose": 1.0,
          "doseUnits": "Tablet",
          "route": "Oral",
          "frequency": "Twice a day",
          "asNeeded": false,
          "administrationInstructions": "{\"instructions\":\"As directed\"}",
          "quantity": 4.0,
          "quantityUnits": "Tablet",
          "numberOfRefills": null
        },
        "dateActivated": 1750033770000,
        "scheduledDate": 1750033770000,
        "effectiveStartDate": 1750033770000,
        "effectiveStopDate": 1750206569000,
        "orderReasonText": null,
        "duration": 2,
        "durationUnits": "Days",
        "voided": false,
        "voidReason": null,
        "orderReasonConcept": null,
        "sortWeight": null,
        "conceptUuid": "70116AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
      },
      "provider": {
        "uuid": "d7a67c17-5e07-11ef-8f7c-0242ac120002",
        "name": "Super Man",
        "encounterRoleUuid": null
      },
      "orderAttributes": null,
      "retired": false,
      "encounterUuid": "fe91544a-4b6b-4bb0-88de-2f9669f86a25",
      "creatorName": "Super Man",
      "orderReasonConcept": null,
      "orderReasonText": null,
      "dosingInstructionType": "org.openmrs.module.bahmniemrapi.drugorder.dosinginstructions.FlexibleDosingInstructions",
      "previousOrderUuid": null,
      "concept": {
        "uuid": "70116AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
        "name": "Acetaminophen",
        "dataType": "N/A",
        "shortName": "Acetaminophen",
        "units": null,
        "conceptClass": "Drug",
        "hiNormal": null,
        "lowNormal": null,
        "set": false,
        "mappings": [
          {
            "code": "70116",
            "name": null,
            "source": "CIEL"
          },
          /* Response Truncated */
        ]
      },
      "sortWeight": null,
      "uuid": "a8a2e7d6-50cf-4e3e-8693-98ff212eee1b",
      "effectiveStartDate": 1750033770000,
      "effectiveStopDate": 1750206569000,
      "orderGroup": null,
      "autoExpireDate": 1750206569000,
      "scheduledDate": 1750033770000,
      "dateStopped": null,
      "instructions": null,
      "dateActivated": 1750033770000,
      "commentToFulfiller": null,
      "orderNumber": "ORD-1",
      "careSetting": "OUTPATIENT",
      "orderType": "Drug Order",
      "drug": {
        "name": "Paracetamol 500 mg",
        "uuid": "e8265115-66d3-459c-852e-b9963b2e38eb",
        "form": "Tablet",
        "strength": "500 mg"
      },
      "dosingInstructions": {
        "dose": 1.0,
        "doseUnits": "Tablet",
        "route": "Oral",
        "frequency": "Twice a day",
        "asNeeded": false,
        "administrationInstructions": "{\"instructions\":\"As directed\"}",
        "quantity": 4.0,
        "quantityUnits": "Tablet",
        "numberOfRefills": null
      },
      "durationUnits": "Days",
      "drugNonCoded": null,
      "action": "NEW",
      "duration": 2
    }
  ]
}

The /bahmnicore/drugOrders/prescribedAndActive model differs significantly
from the OpenMRS FHIR
MedicationRequest
model in both structure and representation. While the Bahmni REST model is
tailored for UI rendering with visit-context grouping and includes
OpenMRS-specific constructs like concept, drug, orderNumber, and flexible
dosing instructions, the FHIR MedicationRequest model adheres to international
standards with a normalized, reference-based structure using resources such as
Medication, Encounter, Practitioner, and coded elements in
CodeableConcept and Timing.

Research

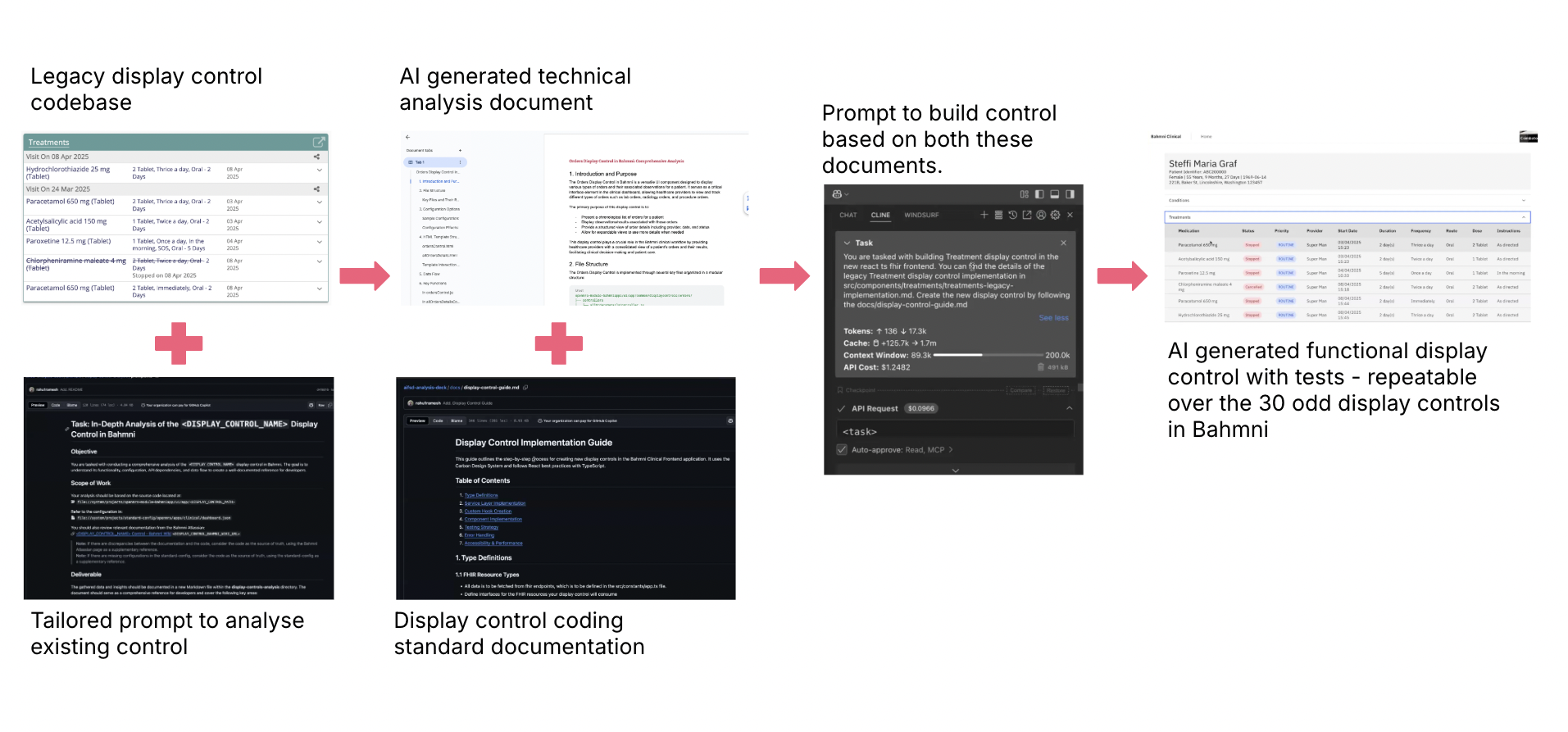

The “Research” phase of the approach involves generating an
MCP-augmented LLM analysis of the selected Display Control. This phase is
centered around understanding the legacy system’s behavior by examining
its source code and conducting reverse engineering. Such analysis is
essential for informing the forward engineering efforts. While not all
identified requirements may be carried forward—particularly in long-lived
systems where certain functionalities may have become obsolete—it is
critical to have a clear understanding of existing behaviors. This enables
teams to make informed decisions about which elements to retain, discard,
or redesign in the target system, ensuring that the modernization effort
aligns with current business needs and technical goals.

At this stage, it is helpful to take a step back and consider how human
developers typically approach a migration of this nature. One key insight
is that migrating from Angular to React relies heavily on contextual
understanding. Developers must draw upon various dimensions of knowledge
to ensure a successful and meaningful transition. The critical areas of
focus typically include:

• Purpose Evaluation: understanding the functional intent and role of the
  existing Angular components within the broader application.
• Data Model Analysis: reviewing the underlying data structures and their
  relationships to assess compatibility with the new architecture.
• Data Flow Mapping: tracing how data moves from backend APIs to the
  frontend UI to ensure continuity in the user experience.
• FHIR Model Alignment: identifying whether the current data model can be
  mapped to an HL7 FHIR-compatible structure, where applicable.
• Comparative Analysis: evaluating structural and functional similarities,
  differences, and potential gaps between the old and target implementations.
• Performance Considerations: taking into account areas for performance
  enhancement in the new system.
• Feature Relevance: assessing which features should be carried forward,
  redesigned, or deprecated based on current business needs.

This context-driven analysis is often the most challenging aspect of
any legacy migration. Importantly, modernization is not merely about
replacing outdated technologies—it is about reimagining the future of the
system and the business it supports. It involves the evolution of the
application across its entire lifecycle, including its architecture, data
structures, and user experience.

The expertise of subject matter experts (SMEs) and domain specialists
is crucial to understand existing behavior and to prepare a guide for the
migration. And what better way to capture the expected behavior than
through well-defined test scenarios against which the migrated code will
be evaluated. Understanding what scenarios are to be tested is critical
not just in making sure that – everything that used to work still works
and the new behavior would work as expected but also because now your LLM
has a clearly defined set of goals that it knows is what’s expected. By
defining these goals explicitly, we can make the LLM’s responses as
deterministic as possible, avoiding the unpredictability of probabilistic
responses and ensuring more reliable outcomes during the migration
process.

Based on this understanding, I developed a comprehensive and
strategically structured prompt
designed to capture all relevant information effectively.

While the prompt covers all expected areas—such as data flow,
configuration, key functions, and integration—it also includes several
sections that warrant specific mention:

• FHIR Compatibility: this section maps the custom Bahmni data model
  to HL7 FHIR resources and highlights gaps, thereby supporting future
  interoperability efforts. Completing this mapping requires a solid understanding
  of FHIR concepts and resource structures, and can be a time-consuming task. It
  typically involves several hours of detailed analysis to ensure accurate
  alignment, compatibility verification, and identification of divergences between
  the OpenMRS and FHIR medication models, which can now be done in a matter of
  seconds.
• Testing Guidelines for React + TypeScript Implementation Over OpenMRS
  FHIR: this section offers structured test scenarios that emphasize data
  handling, rendering accuracy, and FHIR compliance for the modernized frontend
  components. It serves as an excellent foundation for the development process,
  setting out a mandatory set of criteria that the LLM should satisfy while
  rebuilding the component.
• Customization Options: this outlines available extension points and
  configuration mechanisms that enhance maintainability and adaptability across
  diverse implementation scenarios. While some of these options are documented,
  the LLM-generated analysis often uncovers additional customization paths
  embedded in the codebase. This helps identify legacy customization approaches
  more effectively and ensures a more exhaustive understanding of current
  capabilities.

To gather the necessary data, I utilized two lightweight servers:

• An Atlassian MCP server to extract any available documentation on the
  display control.
• A filesystem MCP server, where the legacy frontend code and configuration
  were mounted, to provide source code-level analysis.

Figure 3: MCP + Cline + Claude Setup Diagram

While optional, this filesystem server allowed me to focus on the target
system’s code within my IDE, with the legacy reference codebases conveniently
accessible through the mounted server.

These light weight servers each expose specific capabilities through the
standardized Model Context Protocol, which is then used by Cline (my client in
this case) to access the code base, documentation and configuration. Since the
configurations shipped are opinionated and the documents often outdated, I added
specific instructions to take the source code as the single source of truth and
the rest as a supplementary reference.

Review

The second phase of the approach —is where the human in the loop
becomes invaluable.

The AI-generated analysis isn’t intended to be accepted at face value,
especially for complex codebases. You’ll still need a domain expert and an
architect to vet, contextualize, and guide the migration process. AI alone
isn’t going to migrate an entire project seamlessly; it requires
thoughtful decomposition, clear boundaries, and iterative validation.

Not all these requirements will necessarily be incorporated into the
target system, for example the ability to print a prescription sheet based
on the medications prescribed is deferred for now.

In this case, I augmented the analysis with sample responses from the
FHIR endpoint and while discarding aspects of the system that are not
relevant to the modernization effort. This includes performance
optimizations, test cases that are not directly relevant to the migration,
and configuration options such as the number of rows to display and
whether to show active or inactive medications. I felt these can be
addressed as part of the next iteration.

For instance, consider the unit test scenarios defined for rendering
treatment data:

        ✅ Happy Path

        It should correctly render the drugName column.
        It should correctly render the status column with the appropriate Tag color.
        It should correctly render the priority column with the correct priority Tag.
        It should correctly render the provider column.
        It should correctly render the startDate column.
        It should correctly render the duration column.
        It should correctly render the frequency column.
        It should correctly render the route column.
        It should correctly render the doseQuantity column.
        It should correctly render the instruction column.

        ❌ Sad Path

        It should show a “-” if startDate is missing.
        It should show a “-” if frequency is missing.
        It should show a “-” if route is missing.
        It should show a “-” if doseQuantity is missing.
        It should show a “-” if instruction is missing.
        It should handle cases where the row data is undefined or null.


Replacing missing values with “-” in the sad path scenarios has been removed,
as it does not align with the requirements of the target system. Such decisions
should be guided by input from the subject matter experts (SMEs) and
stakeholders, ensuring that only functionality relevant to the current business
context is retained.

The literature gathered on the display control now needs to be coupled with
project conventions, practices, and guidelines without which the LLM is open to
interpret the above request, on the data that it was trained with. This includes
access to functions that can be reused, sample data models and services and
reusable atomic components that the LLMs can now rely on. If such practices,
style guides and guidelines are not clearly defined, every iteration of the
migration risks producing non-conforming code. Over time, this can contribute to
a fragmented codebase and an accumulation of technical debt.

The core objective is to define clear, project-specific coding standards and
style guides to ensure consistency in the generated code. These standards act as
a foundational reference for the LLM, enabling it to produce output that aligns
with established conventions. For example, the Google TypeScript Style Guide can
be summarized and documented as a TypeScript style guide stored in the target
codebase. This file is then read by Cline at the start of each session to ensure
that all generated TypeScript code adheres to a consistent and recognized
standard.

Rebuild

Rebuilding the feature for a target system with LLM-generated code is
the final phase of the workflow. Now with all the required data gathered,
we can get started with a simple prompt

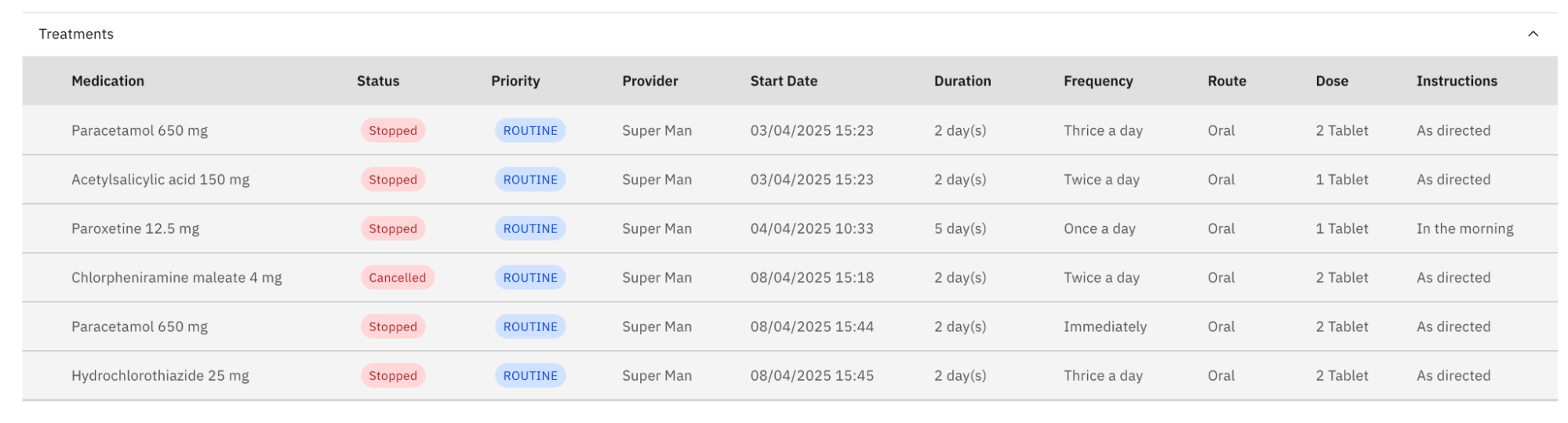

You are tasked with building a Treatment display control in the new react ts fhir frontend. You can find the details of the legacy Treatment display control implementation in docs/treatments-legacy-implementation.md. Create the new display control by following the docs/display-control-guide.md

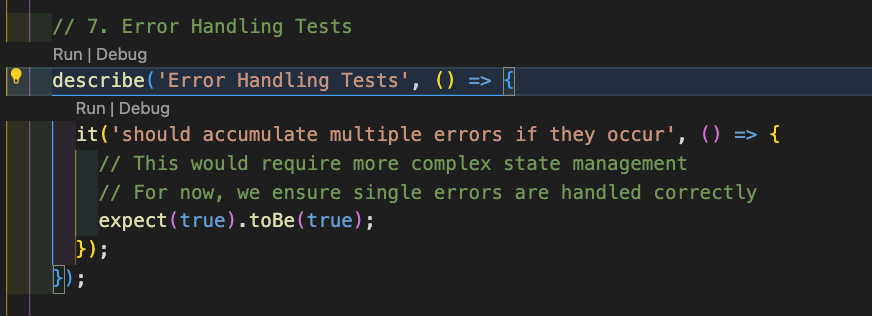

At this stage, the LLM generates the initial code and test scenarios,
leveraging the information provided. Once this output is produced, it is
essential for domain experts and developers to conduct a thorough code review
and apply any necessary refactoring to ensure alignment with project standards,
functionality requirements, and long-term maintainability.

Refactoring the LLM-generated code is critical to ensuring the code remains
clean and maintainable. Without proper refactoring, the result could be a
disorganized collection of code fragments rather than a cohesive, efficient
system. Given the probabilistic nature of LLMs and the potential discrepancies
between the generated code and the original objectives, it is essential to
involve domain experts and SMEs at this stage. Their role is to thoroughly
review the code, validate that the output aligns with the initial expectations,
and assess whether the migration has been successfully executed. This expert
involvement is crucial to ensure the quality, accuracy, and overall success of
the migration process.

This phase should be approached as a comprehensive code review—similar to
reviewing the work of a senior developer who possesses strong language and
framework expertise but lacks familiarity with the specific project context.
While technical proficiency is essential, building robust systems requires a
deeper understanding of domain-specific nuances, architectural decisions, and
long-term maintainability. In this context, the human-in-the-loop plays a
pivotal role, bringing the contextual awareness and system-level understanding
that automated tools or LLMs may lack. It is a crucial process to ensure that
the generated code integrates seamlessly with the broader system architecture
and aligns with project-specific requirements.

In our case, the intent and context of the rebuild were clearly defined,
which minimized the need for post-review refactoring. The requirements gathered
during the research phase—combined with clearly articulated project conventions,
technology stack, coding standards, and style guides—ensured that the LLM had
minimal ambiguity when generating code. As a result, there was little left for
the LLM to infer independently.

That said, any unresolved questions regarding the implementation plan can
lead to deviations from the expected output. While it is not feasible to
anticipate and answer every such question in advance, it is important to
acknowledge the inevitability of “unknown unknowns.” This is precisely where a
thorough review becomes essential.

In this particular instance, my familiarity with the display control we were
rebuilding allowed me to proactively minimize such unknowns. However, this level
of context may not always be available. Therefore, I strongly recommend
conducting a detailed code review to help uncover these hidden gaps. If
recurring issues are identified, the prompt can then be refined to address them
preemptively in future iterations.

The allure of LLMs is undeniable; they offer a seemingly effortless solution
to complex problems, and developers can often create such a solution quickly and
without needing years of deep coding experience. This should not create a bias
in the experts, succumbing to the allure of LLMs and eventually take their hands
off the wheel.

Outcome

Figure 4: A high level overview of the process; taking a feature from the legacy codebase and using LLM-assisted analysis to rebuild it within the target system

In my case the code generation process took about 10 minutes to
complete. The analysis and implementation, including both unit and
integration tests with approximately 95% coverage, were completed using
Claude 3.5 Sonnet (20241022). The total cost for this effort was about
$2.

Figure 5: Legacy Treatments Display Control built using Angular and integrated with OpenMRS REST endpoints

Figure 6: Modernized Treatments Display Control rebuilt
using React and TypeScript, leveraging FHIR endpoints

Without AI support, both the technical analysis and implementation
would have likely taken a developer a minimum of two to three days. In my
case, developing a reusable, general-purpose prompt—grounded in the shared
architectural principles behind the approximately 30 display controls in
Bahmni—took about five focused iterations over four hours, at a slightly
higher inference cost of around $10 across those cycles. This effort was
essential to ensure the generated prompt was modular and broadly
applicable, given that each display control in Bahmni is essentially a
configurable, embeddable widget designed to enhance system flexibility
across different clinical dashboards.

Even with AI-assisted generation, one of the key costs in development
remains the time and cognitive load required to analyze, review, and
validate the output. Thanks to my prior experience with Bahmni, I was able
to review the generated analysis in under 15 minutes, supplementing it
with quick parallel research to validate the claims and data mappings. I
was pleasantly surprised by the quality of the analysis: the data model
mapping was precise, the logic for transformation was sound, and the test
case suggestions covered a comprehensive range of scenarios, both typical
and edge cases.

Code review, however, emerged as the most significant challenge.
Reviewing the generated code line by line across all changes took me
approximately 20 minutes. Unlike pairing with a human developer—where
iterative discussions occur at a manageable pace—working with an AI system
capable of generating entire modules within seconds creates a bottleneck
on the human side, especially when attempting line-by-line scrutiny. This
isn’t a limitation of the AI itself, but rather a reflection of human
review capacity. While AI-assisted code reviewers are often proposed as a
solution, they can generally identify syntactic issues, adherence to best
practices, and potential anti-patterns—but they struggle to assess intent,
which is critical in legacy migration projects. This intent, grounded in
domain context and business logic, must still be confirmed by the human in
the loop.

For a legacy modernization project involving a migration from AngularJS
to React, I would rate this experience an absolute 10/10. This capability
opens up the possibility for any individuals with decent technical
expertise and strong domain knowledge to migrate any legacy codebase to a
modern stack with minimal effort and in significantly less time.

I believe that with a bottom-up approach, breaking the problem down
into atomic components, and clearly defining best practices and
guidelines, AI-generated code could greatly accelerate delivery
timelines—even for complex brownfield projects as we saw for Bahmni.

The initial analysis and the subsequent review by experts results in a
crisp enough document that lets us use the limited space in the context
window in an efficient way so we can fit more information into one single
prompt. Effectively, this allows the LLM to analyze code in a way that is
not limited by how the code is organized in the first place by developers.
This also results in reducing the overall cost of using LLMs, as a brute
force approach would mean that you spend 10 times as much even for a much
simpler project.

While modernizing the legacy codebase is the main product of this
proposed approach, it is not the only valuable one. The documentation
generated about the system is valuable when provided not just to the end
users / implementers in complementing or filling gaps in existing systems
documentation and also would stand in as a knowledge base about the system
for forward engineering teams pairing with LLMs to enhance or enrich
system capabilities.

Why the Review Phase Matters

A key enabler of this successful migration was a well-structured plan
and detailed scope review phase prior to implementation. This early
investment paid dividends during the code generation phase. Without a
clear understanding of the data flow, configuration structure, and
display logic, the AI would have struggled to produce coherent and
maintainable outputs. If you have worked with AI before, you may have
noticed that it is consistently eager to generate output. In an earlier
attempt, I proceeded without sufficient caution and skipped the review
step—only to discover that the generated code included a useMemo hook
for an operation that was computationally trivial. One of the success
criteria in the generated analysis was that the code should be
performant, and this appeared to be the AI’s way of fulfilling that
requirement.

Interestingly, the AI even added unit tests to validate the
performance of that specific operation. However, none of this was
explicitly required. It arose solely due to a poorly defined intent. AI
incorporated these changes without hesitation, despite not fully
understanding the underlying requirements or seeking clarification.
Reviewing both the generated analysis and the corresponding code ensures
that unintended additions are identified early and that deviations from
the original expectations are minimized.

Review also plays a key role in avoiding unnecessary back-and-forth
with the AI during the rebuild phase. For instance, while refining the
prompt for the “Display Control Implementation
Guide”,
I initially didn’t have the section specifying the unit tests to be
included. As a result, the AI generated a test that was largely
meaningless—offering a false sense of test coverage with no real
connection to the code under test.

Figure 7: AI generated unit test that verifies reality
is still real

In an attempt to fix this test, I began prompting
extensively—providing examples and detailed instructions on how the unit
test should be structured. However, the more I prompted, the further the
process deviated from the original objective of rebuilding the display
control. The focus shifted entirely to resolving unit test issues, with
the AI even beginning to review unrelated tests in the codebase and
suggesting fixes for problems it identified there.

Eventually, realizing the increasing divergence from the intended
task, I restarted the process with clearly defined instructions from the
outset, which proved to be far more effective.

This leads us to a crucial insight: Don’t Interrupt AI.

LLMs, at their core, are predictive sequence generators that build
narratives token by token. When you interrupt a model mid-stream to
course-correct, you break the logical flow it was constructing.
Stanford’s “Lost in the
Middle”
study revealed that models can suffer up to a 20%
drop in accuracy when critical information is buried in the middle of
long contexts, versus when it’s clearly framed upfront. This underscores
why starting with a well-defined prompt and letting the AI complete its
task unimpeded often yields better results than constant backtracking or
mid-flight corrections.

This idea is also reinforced in “Why Human Intent Matters More as AI
Capabilities Grow” by Nick
Baumann,
which argues that as model capabilities scale, clear human intent—not
just brute model strength—becomes the key to unlocking useful output.
Rather than micromanaging every response, practitioners benefit most by
designing clean, unambiguous setups and letting the AI complete the arc
without interruption.

Conclusion

It is important to clarify that this approach is not intended to be a
silver bullet capable of executing a large-scale migration without
oversight. Rather, its strength lies in its ability to significantly
reduce development time—potentially by several weeks—while maintaining
quality and control.

The goal isn’t to replace human expertise but to amplify it—to
accelerate delivery timelines while ensuring that quality and
maintainability are preserved, if not improved, during the transition.

It is also important to note that the experience and results discussed
thus far are limited to read-only controls. More complex or interactive
components may present additional challenges that require further
evaluation and refinement of the prompts used.

One of the key insights from exploring GenAI for legacy migration is
that while large language models (LLMs) excel at general-purpose tasks and
predefined workflows, their true potential in large-scale business
transformation is only realized when guided by human expertise. This is
well illustrated by Moravec’s Paradox, which observes that tasks perceived
as intellectually complex—such as logical reasoning—are relatively easier
for AI, whereas tasks requiring human intuition and contextual
understanding remain challenging. In the context of legacy modernization,
this paradox reinforces the importance of subject matter experts (SMEs)
and domain specialists, whose deep experience, contextual understanding,
and intuition are indispensable. Their expertise enables more accurate
interpretation of requirements, validation of AI-generated outputs, and
informed decision-making—ultimately ensuring that the transformation is
aligned with the organization’s goals and constraints.

While project-specific complexities may render this approach ambitious,
I believe that by adopting this structured workflow, AI-generated code can
significantly accelerate delivery timelines—even in the context of complex
brownfield projects. The intent is not to replace human expertise, but to
augment it—streamlining development while safeguarding, and potentially
enhancing, code quality and maintainability. Although the quality and
architectural soundness of the legacy system remain critical factors, this
methodology offers a strong starting point. It reduces manual overhead,
creates forward momentum, and lays the groundwork for cleaner and more
maintainable implementations through expert-led, guided refactoring.

I firmly believe following this workflow opens up the possibility for
any individuals with decent technical expertise and strong domain
knowledge to migrate any legacy codebase to a modern stack with minimal
effort and in significantly less time.
